    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting

    Ask Lasest Price
    Brand Name : zzlysun
    Model Number : LY 590~610W
    Supply Ability : 1000 Pallet/Pallets per Day
    Price : $0.25/pallets 62-154 pallets
    • Product Details
    • Company Profile

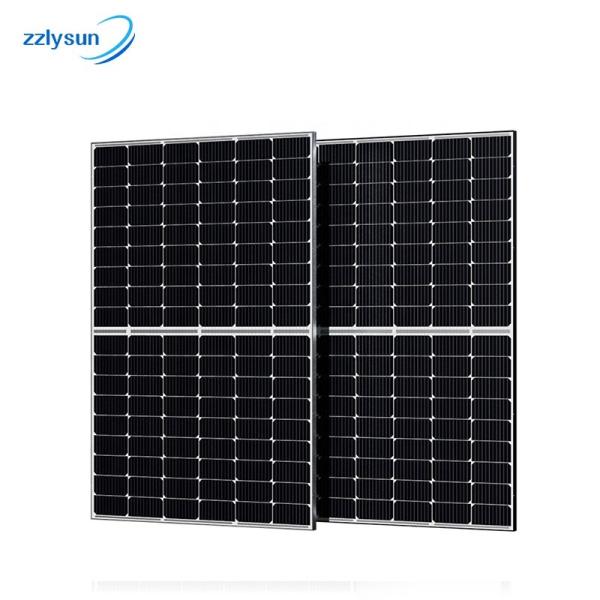

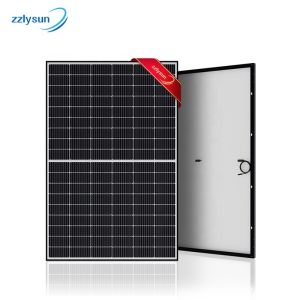

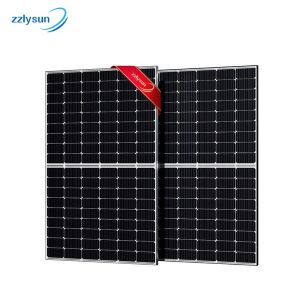

    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting

    Solar Panels 590W 600W Panel Solar 610W for complete Solar Panel System 100kw 200kw 300kw

    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    General mode:

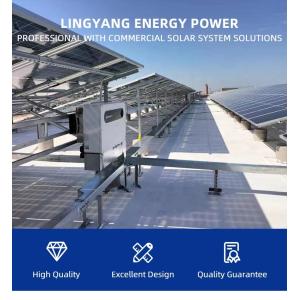

    Commercial solar system will be used on the framland,residential community ,bus station,factory ,car parking and large ground power station.
    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    ITEM
    MECHANICAL CHARACTERISTICS
    Dimensions
    2472x1134x35mm(LxWx H)
    Weight
    31.1kg
    Front Glass
    3.2mm high transmisson tempered glass
    Encapsulation
    EVA
    Cells
    156pcs 182x91mm Monocrystalline solar cells
    Frame
    Anodized Aluminium Alloy (silver or black)
    Junction Box
    Rated current:25A,IP68,TUV
    Connector
    Compatible with MC4
    Backsheet
    Composite film
    Cable
    Length Negative 400mm/Positive 300mm
    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS(STC)
    Module Power
    590W
    595W
    600W
    605W
    610W
    Open Circuit Voltage-Voc[V]
    52.87
    53.16
    53.47
    53.79
    54.12
    Short Circuit Current-lsc[A]
    13.77
    13.81
    13.85
    13.88
    13.91
    Max Power Voltage-Vmp[V]
    44.8
    45.05
    45.31
    45.58
    45.86
    Max Power Current-lmp[A]
    13.17
    13.21
    13.25
    13.28
    13.31
    Module Efficiency-p[%]
    21.04
    21.22
    21.40
    21.58
    21.76
    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    Advantage
    The Commercial solar system will provide the customer with whole system integration solutions for development ,design,construction ,operation and maintenance.Any requirement for the accurate solutions,pls contact with our salesman directly.
    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    ❖ Company
    The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    ❖ Quality gurantee
    The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    ❖ Plywood Package
    The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
    200KW 300KW Monocrystalline Silicon Solar Panel Ground Mounting
    ❖ Certificate
    1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
    2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
    FAQ
    1.What kind of product can you provide ?
    Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

    2.How much power energy can your company provide?
    Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

    3.Who is your service customer?
    Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

    4.What is your warranty and after-sales policy?
    Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.

    5.How many days will the product delivery?
    Re:All the package will shipped within 10~20 working days after your payment.
